12V 3A Power Supply with Backup battery Function

CodeUPS-1203-01B
Qty

12V3A Power Supply with battery backup function เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ เหมาะสำหรับ  งานระบบ Control หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

12V3A Power Supply with battery backup function เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ เหมาะสำหรับ  งานระบบ Control หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

Applicable to all types of access control system, building intercom systems, alarm monitoring systems

! ราคาดังกล่าว ไม่รวม Battery

UPS power Supply มีระบบการป้องกัน Power protection ดังนี้

Output over-voltage protection,
over-current protection,
short circuit protection
Battery over-charging protection,
over-discharging protection,
anode & cathode wrong connect protection


------------------------------------------------------------

Specification :

•Input 190~260VAC 50 / 60 Hz .
•3 amps (36VA) supply current.
•Output 12VDC.
•Main fuses are rated at 3.0 amps / 250VAC.
•Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
•AC power LED indicator.
•Short protected outputs.
•Surge protected outputs.
•Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
•Enclosure dimensions(inch): 8.0H*6.5W*2.9D
•Weight:1.2 Kg

ง่ายในการติดตั้ง ลดระยะเวลาในการติดตั้งระบบ






ตัวอย่างประยุกต์ ใช้งาน

- ระบบ Alarm Security แบบเดินสาย

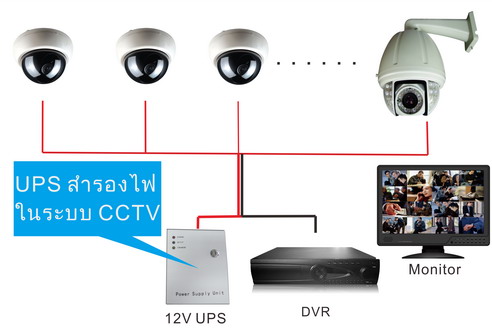

- ติดตั้ง UPS สำรองไฟ ในระบบ CCTV
