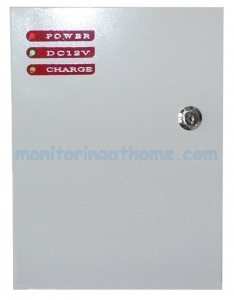

12V 5A Power Supply with Backup battery Function

Highlights
UPS Power Supply ขนาด 12V DC  5A เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ เหมาะสำหรับ  CCTV system  , Burglar System หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ
CodeUPS-1205-01B
Qty
12V 5A UPS เหมาะสำหรับงานที่ต้องการ จ่ายไฟต่อเนื่อง และยังสามารถทำงานได้ขณะไฟดับ
อาทิ CCTV power supply, Burglar power supply ,Sensor Power supply . เป็นต้น

12V 5A UPS Power Supply  เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ
เหมาะสำหรับ  CCTV system  , Burglar System หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

Applicable to all types of access control system, building intercom systems, alarm monitoring systems

12V5A UPS power Supply มีระบบการป้องกัน Power protection ดังนี้

Output over-voltage protection,
over-current protection,
short circuit protection
Battery over-charging protection,
over-discharging protection,
anode & cathode wrong connect protection

** ราคาดังกล่าว ไม่รวม Battery



-------------------------------------------------------

12V 5A DC UPS Specification :

- Input Voltage: AC190~240V

- Frequency: 50~60 Hz

- Output Voltage: DC 12V±15%

- Output Current: 5Amp

- Over current Protection:  6A±5%

- Ripple & Noise : ≤  100mV

- Efficiency:  ≥85%

- Charge Voltage: 13.8V

- Charge Current: 1A

- Battery Under voltage Protection: 10V

- Enclosure dimensions: 265*195*75mm

- Weight:  1.4kg

- AC Failure Alarm: N

- Battery low-voltage Alarm: N

-----------------------------------------------------------






ตัวอย่างประยุกต์ ใช้งาน

- ระบบ Alarm Security แบบเดินสาย


- ติดตั้ง UPS สำรองไฟ ในระบบ CCTV
