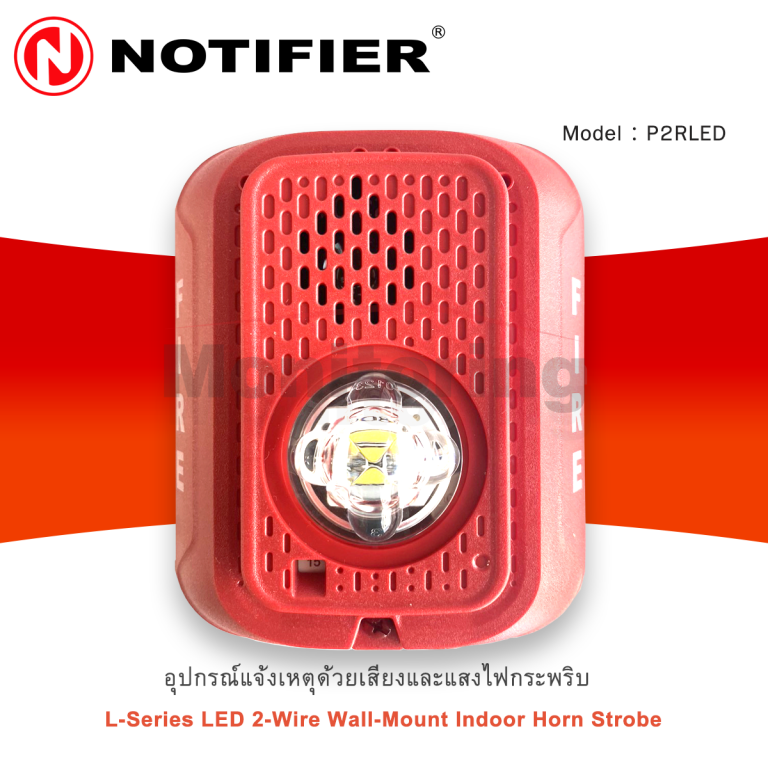

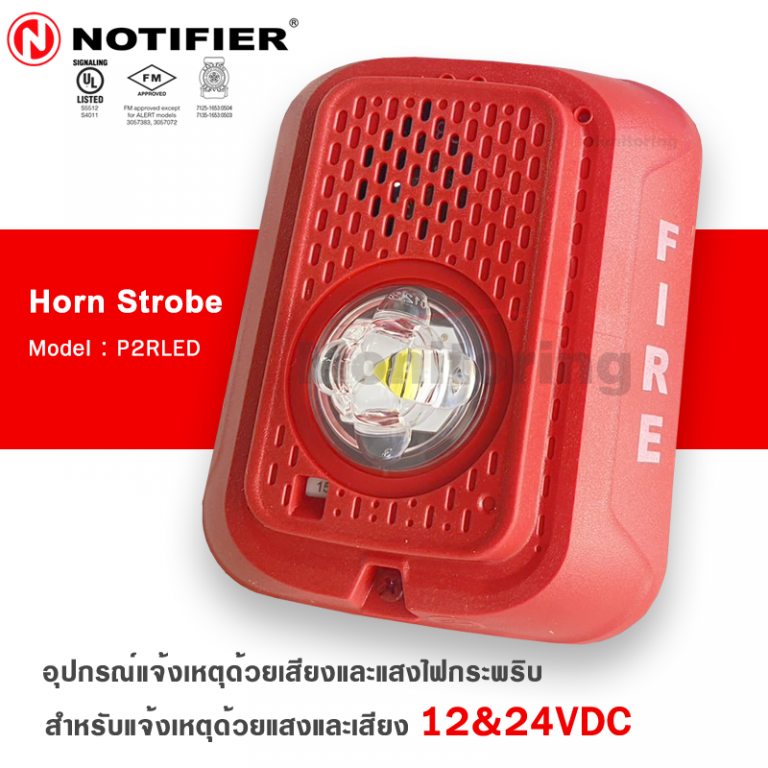

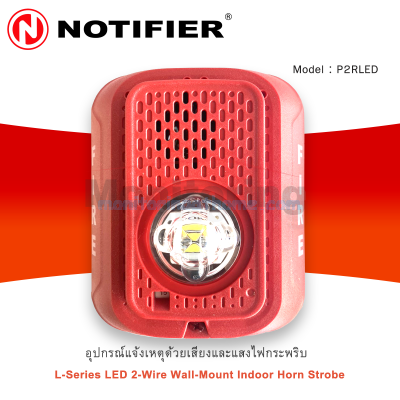

LED HORN STROBE P2RLED 2 wire

สำหรับแจ้งเหตุด้วยแสงและเสียง  24VDC   สีแดง  ใช้กับตู้ Fire alarm  control panel

Features

• LED technology provides lower current draw

• Digital Voltage Meter (DVM) diagnostic test points for Horn

Strobes and Strobes

• Common aesthetics across the L-Series platform

• Standard and compact sizes

• Tamper-resistant construction

• Field-selectable candela settings on wall units: 15, 30, 75, 95,

110, 135, and 185

• Field-selectable candela settings on ceiling units: 15, 30, 75, 95,

115, 150, and 177

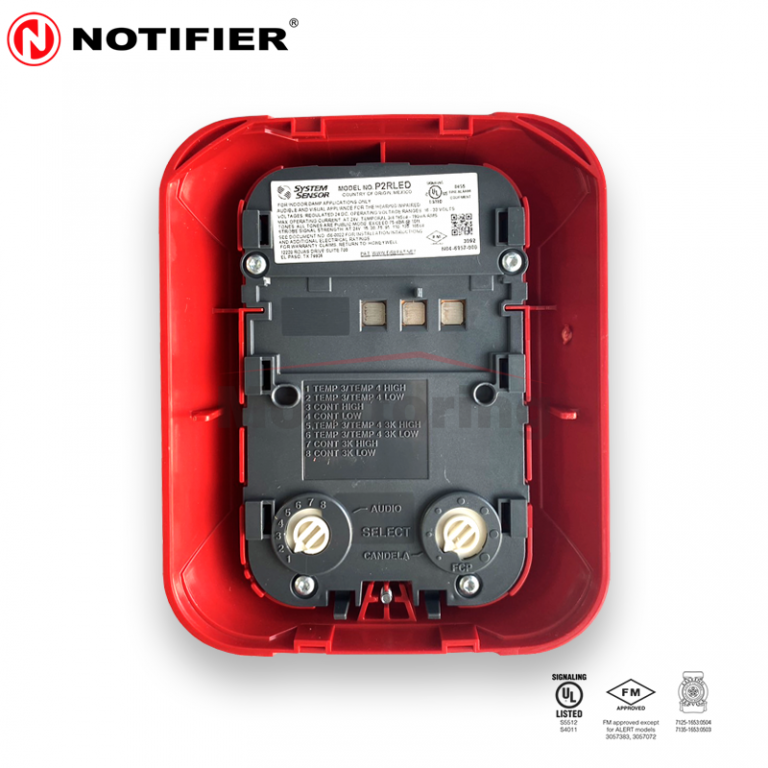

• Rotary switches for candela, tone and volume selections

• Mounting plate provides plug-in design for easier installation and

shorting springs to check wiring continuity

• Electrically compatible with legacy SpectrAlert, SpectrAlert

Advance and L-series devices

• Synchronization through use of UL approved power supplies that

support System Sensor Sync protocol or System Sensor MDL3

Sync Module

• Horns, Strobes and Horn Strobes listed for wall or ceiling use

L-Series and L-Series with LED

Specifications

Standard Operating Temperature : 32°F to 120°F (0°C to 49°C)

Humidity Range : 10 to 93% non-condensing

Strobe Flash Rate : 1 flash per second

Nominal Voltage, LED Strobes and Horn Strobes : Regulated 24 VDC

Nominal Voltage, Horns : Regulated 12 VDC or regulated 24 DC/FWR

Operating Voltage Range, LED Strobes and Horn Strobes : 16 to 33 V (24 V nominal)

Operating Voltage Range, Horns : 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)

Input Terminal Wire Gauge : 12 to 18 AWG

Dimensions : Wall-Mounted Equipment

สินค้า Stock สั่งซื้อจำนวนมาก ติดต่อ ฝ่ายขาย
