Specifications
Working Voltage: 9VDC-20VDC
Working Current: 12VDC

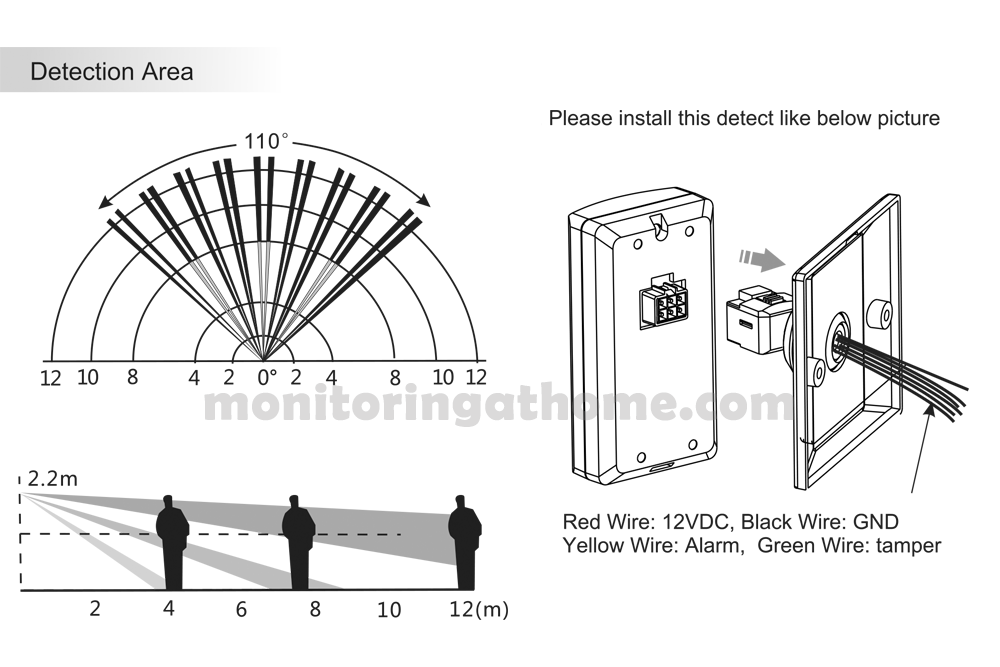

Detection Distance: 12m
Detection Angle: 110°C
Detection Tyep: Infrared Ray+Microwave
Sensor Type: Dual pyroelectric infrared semsor
Microwave Frequency: 10.525GHZ
Pulse: Optional
Installion Height: 2.2m
Working Temperature: -10°C to +50°C
LED Status: Green LED/Interfrared Sensor in triggerred
Yellow LED/Microwave is triggerred
Red LED/ALARM
Alarm Output: NC/NO optional
Anti Tamper: NC
Size: 110*60*45mm
