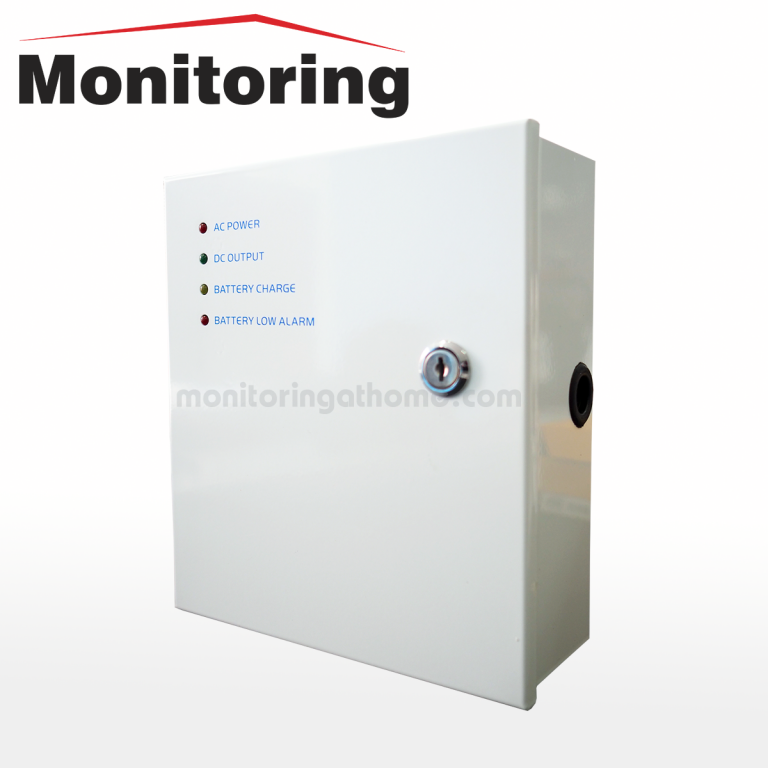

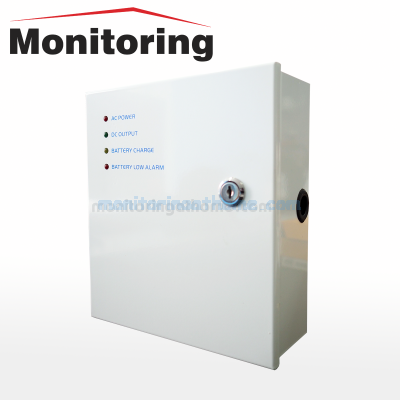

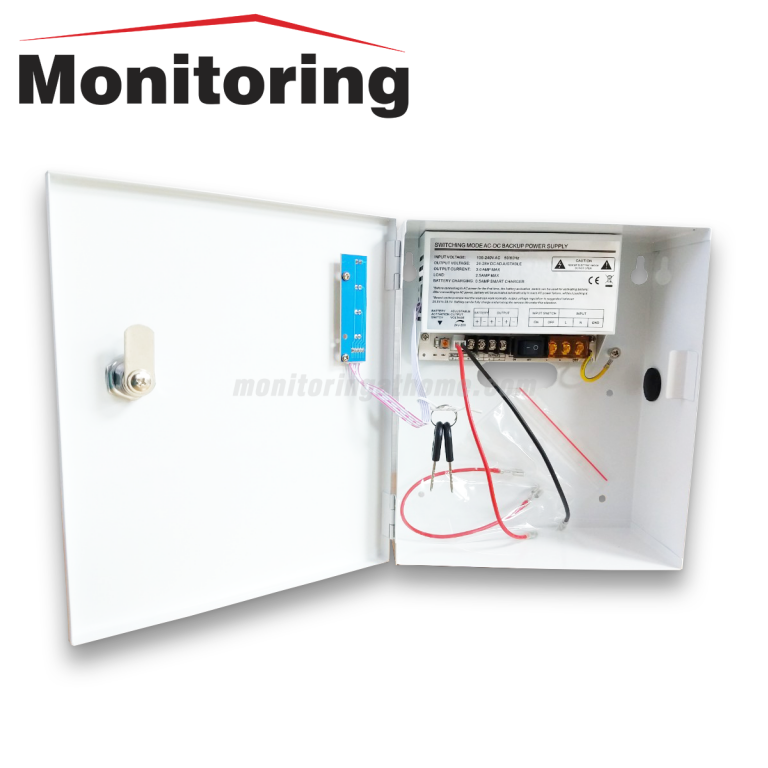

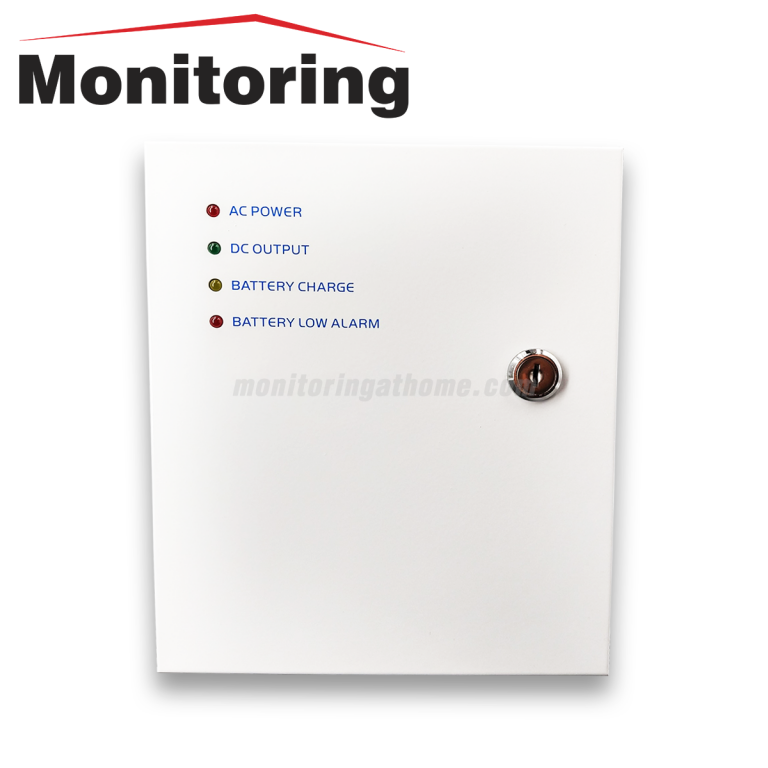

24V 2.5A Power Supply with battery Backup Function

Highlights
24V 2.5A  DC UPS ที่มีแบตเตอร์รี่สำรอง ขณะไฟดับ
CodeUPS-242A5-01B
Qty
UPS24V 2.5A Power Supply with battery backup function เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ เหมาะสำหรับ  Control  Automation ,CCTV system  , Alarm System หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

UPS Power Supply ขนาด 24V DC 2.5A เป็นแหล่งจ่ายไฟ ที่มีระบบสำรองไฟ ในตัว สามารถทำงานได้ขณะไฟดับ

UPS power Supply มีระบบการป้องกัน Power protection ดังนี้
Output over-voltage protection,
over-current protection,
short circuit protection
Battery over-charging protection,
over-discharging protection,
anode & cathode wrong connect protection

ราคาดังกล่าวยังไม่รวม Battery 2 ก้อน

-------------------------------------------------------


Specification :

- Input Voltage: AC190~240V

- Frequency: 50~60 Hz

- Output Voltage: DC 24V±15%

- Output Current: 2.5Amp

- Over current Protection:  3A±5%

- Ripple & Noise : ≤  240mV

- Efficiency:  ≥85%

- Charge Voltage: 26.5 V

- Charge Current: 0.5A

- Battery Under voltage Protection: 20V

- Enclosure dimensions: 265*195*75mm

- Weight:  1.4kg

- AC Failure Alarm: N

- Battery low-voltage Alarm: N

สามารถนำใบใช้ในงาน ระบบ 24V DC ต่างๆได้


เหมาะสำหรับ  งานระบบ CCTV system  , Burglar System หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

  ติดต่อสั่งซื้อได้ ในราคา พิเศษกว่าใคร


24V UPS with battery backup function
24V DC UPS with battery backup function
