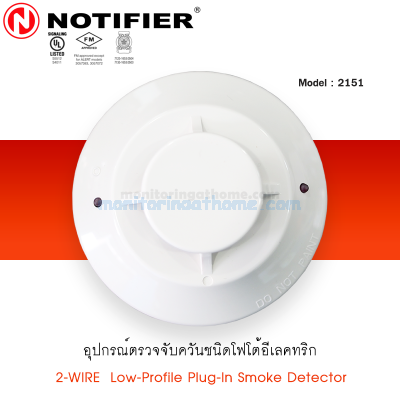

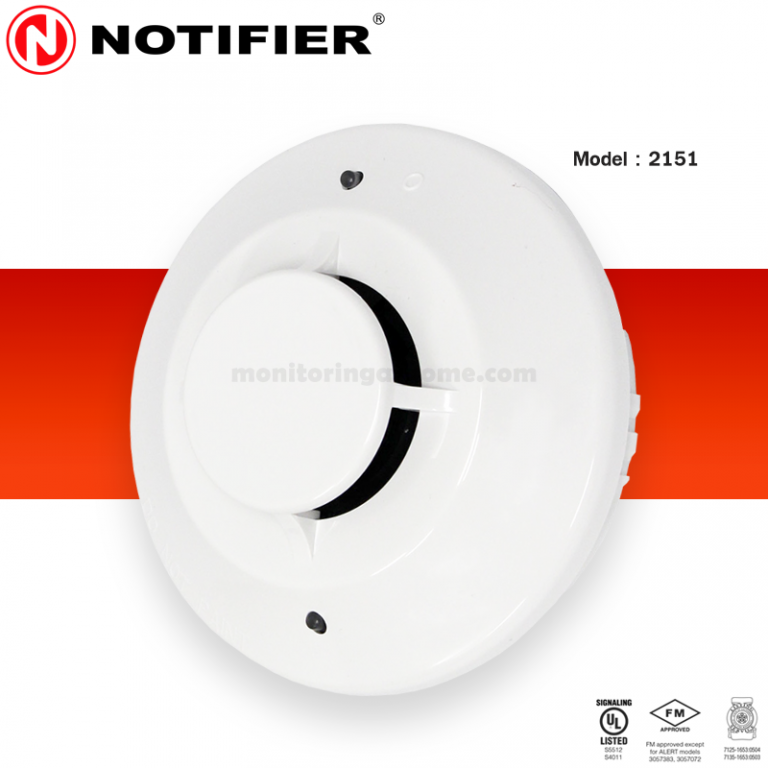

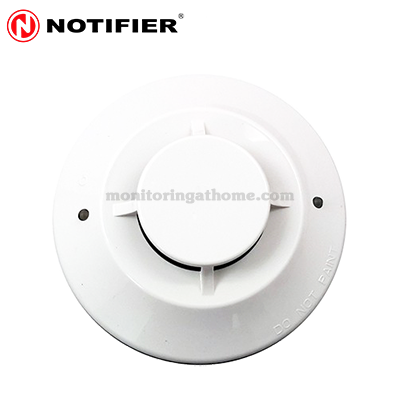

อุปกรณ์ตรวจจับควัน รุ่น 2151 พร้อมฐาน B401 Photoelectronic Plug-in Smoke Detector

Highlights
ตัวจับควันไฟ 2 wire 2151 Smoke detector ,UL แบบ Conventional
Code2151
Qty
2151 Smoke detector Photoelectric Smoke ตัวจับควัน แบบ Conventional UL ,มี LED  สองดวง กระพริบแสดงสถานะ
การทำงานปกติ

ตัวจับควัน 2151 notifier smoke detector 2 wire  เชื่อมต่อ LED remote indicator ได้

ตัวจับควัน smoke detector  สำหรับ Fire alarm Conventional พร้อม Base 401
Smoke Detector Notifirer 2151  มี led indicator แสดงสถานะการทำงาน






2151 low-profile photoelectronic detector With Base B401

เป็น Smoke Detector  มาตรฐาน UL มี LED 2 ดวง สำหรับ แจ้งสถานะของการทำงาน มองได้รอบ 360 องศา และ รองรับ การเชื่อมต่อ กับ Remote Indicator


Specifications

Operating Voltage/Alarm Current : See Adapter Base Selection Guide following

Standby Current : 85μA Standby

Sensitivity : 1 – 3.18%/ft.

Height : 2.0˝ in B401

Diameter : 4.1˝ installed in B401; 6.2˝ installed in B110LP

Shipping Weight : 5.2 oz

Construction : Flame retardant thermoplastic

Temperature : Photo: 32°F to 120°F (0° to 49°C); Photo/thermal: 32°F to 100°F (0° to 38°C)

UL Listed Velocity Range : Photo: 0 – 3000 fpm (0 – 15.2 m/s)

Humidity Range : 10% – 93% RH non-condensing


Adapter Base Selection Guide

Base Model Number : B401††

Loop Type : 2-wire*

Current Limit Resistor : NO

Nominal Voltage : 24VDC

Current Draw on Alarm (mA) : 10–130†


สามารถทดแทน Smoke Notifier ได้ทุกรุ่น

สินค้า Stock สั่งซื้อจำนวนมาก ติดต่อ ฝ่ายขาย
