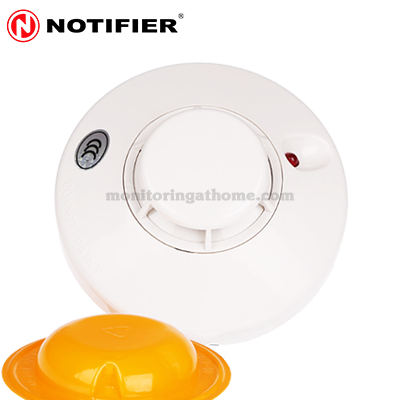

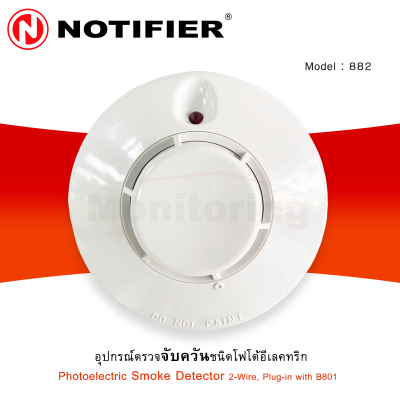

This detector is designed to provide open area protection and to be used with compatible UL listed panels only.

Specifications

Diameter :10.2 cm (4")

Height(including base) :4.8 cm (1.8") for Heat5.0cm(2.0") for Photoelectronic

Operating Temperature Range :0~38°C (32°F to 100°F) for Heat 0~49°C

(32°F to 120°F) for Photoelectronic

Operating Humidity Range :10% to 93%Relative Humidity, Non-condensing

Max .Air Velocity :20m/s （heat only）

Latching Alarm :Reset by momentary power interruption

Sensitivity :63°C (145.4°F) Fixed （heat only）

Operating Voltage :8.5~30 VDC for heat8.5~35 VDC for photoelectronic

Standby Current :≤50μA for heat ≤90μA for photoelectronic

Alarm Current:Min. ： 2 mA for heat； 10mA for photoelectronicMax.

:80 mA for heat； 130mA for photoelectronic
