Sensor : 1/3" F37H CMOS sensor

Processor : Embedded RTOS, dual-core 32-bit DSP (MS368)

Lens : 3.6mm lens

Day & Night : Support IR-CUT, Dual Optical Filters, Day/Night modes auto switch

IR LED : 4 Black Light LEDs, IR Range 30M

Minimum Illumination : Color 0.1Lux@F1.2, black/white 0.01Lux@F1.2

Shutter Speed : 1/50(1/60)s to 1/10,000s

Privacy Masking : Up to 4 area

Video Compression : H.265+ coding, support dual stream

Dual stream : Main Stream 2Mbps~6Mbps, Sub Stream 512kbps~2.5Mbps (adjustable)

Resolutions : Main Stream: 2880*1616@25fps; 2560*1440@25fps; 2304*1296@25fps; 1920*1080@25fps; Sub-stream: 800*448@25fps;

Image Settings : AE Reference, BLC, White Balance, DWDR, AGC

Snapshot : JPEG format

Noise Reduction : 2D/3D noise reduction

AGC & WB & Exposure : Auto Gain Control, Auto White Balance, Auto Exposure

Audio Compression : G.711 standard compression,support two-way Bidrectional Talk, support for audio and video synchronization

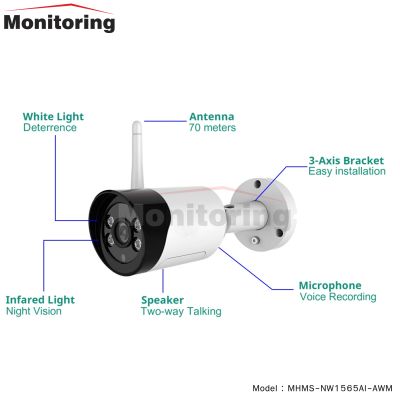

Audio Input/Output : Built-in mic, Built-in speaker

Network Protocol : 1 RJ45 Ethernet interface, 10/100M adaptive

Safety : Password protection

Water Mark : Support

3G/4G : N/A

WIFI : Support

SD card : Support 128G SD card at max

Compatibility : Onvif 2.4

Max. User Acess : 10 users

Mobile monitoring : Support multiple mobile monitoring(iOS,Android)

Temperature : -10℃~60℃

Reliability : omprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature

stable and reliable testi

Humidity : <95% (No condensing)

Waterproof : IP66

Vandal Resistance : /

Braket : Ceiling/Wall Mount Bracket

Casing : Superior aluminum alloy, Good cooling effect

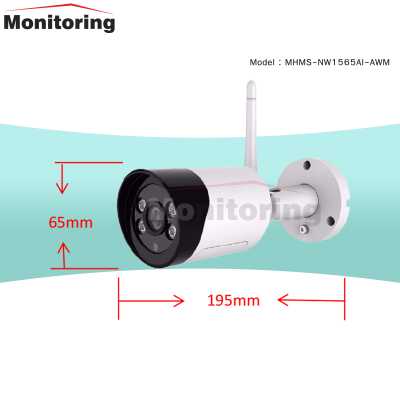

Dimension : 195*65*65mm

Weight : Around 0.5KG

Power : DC5V-12V

Connectors : RJ45; DC
