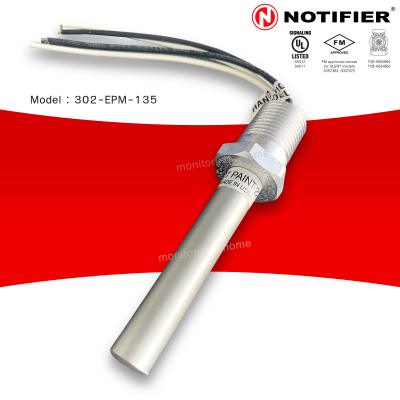

Rate-Anticipation Heat Detector 135'F Explosion-Proof mounting

135°F - Explosion Proof Mounting UL (MODEL 302-EPM)

Explosion proof for installation in hazardous locations.

Has hexagonal grip bushing with 1/2’ conduit threads for attach-ment to threaded hub cover of series JL ﬁxture ﬁtting as manu-factured by Killark Electric Co., or equal. Must be hand tightened only. For Interior use.

Special Considerations

Temp. Rating °F. Max Ceiling Temp. °F.

135 115

194 155

Detectors are not directionally effected, can be mounted horizontally or vertically.

Detectors have a smooth ceiling UL rating of 50’ x 50’

(2500 sq. ft.) on 8 to 10 ft. ceilings.

Detectors, hub covers, or outlet boxes must never be installed in direct sunlight.

Refer to NFPA STAN-DARD 72 for spacing and other considerations.

Electrical Rating

Voltage Current

6-125 VAC 5 amps

6-25 VAC 1 amp

125 VDC 0.5 amp
