แหล่งจ่ายไฟ DC 12V 2A Din Rail UPS Print this pagePrint this page
แหล่งจ่ายไฟ DC 12V 2A Din Rail UPS
Price: ติดต่อสั่งซื้อ 02-690-8538

Highlights:
DC12V 2A DIN Rail UPS แหล่งจ่ายไฟ
Description
Din Rail  DC 12V2A UPS แหล่งจ่ายไฟมี backup  ที่มีแบตเตอร์รี่สำรอง ขณะไฟดับ เหมาะหรับอุปกณ์ที่ต้องการ สำรองไฟขณะไฟดับ อาทิ ระบบ CCTV , ระบบ Alarm Security , ระบบควบคุม อัตโนมัติ

ง่ายในการติดตั้ง ลดระยะเวลาในการติดตั้งงานระบบ

SPECIFICATION
INPUT
- Voltage Range : 190 - 265VAC
- Frequency Range : 50 - 60Hz
Efficiency (Typ.) : 88%

OUTPUT
- Voltage (AC Supplies) : 12 - 14V adjustable
- Voltage (BT Supplies) : Same as battery voltage
- Rated Current : 2A
- Rated Power (Max.) : 28W
- Ripple & Noise : <100mVp-p
- Line Regulation : ±2%
- Load Regulation : ±2%
- Output Channel : 1 channel

CHARGING
- Voltage : Same as output voltage
- Current : 500mA (max.)
                 Constant voltage mode, charge current decreases
                 when battery voltage increases.

LED INDICATOR
- Green : On/AC power supplies
- Red : On/Battery supplies

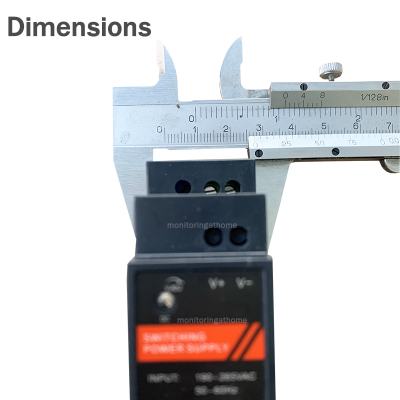

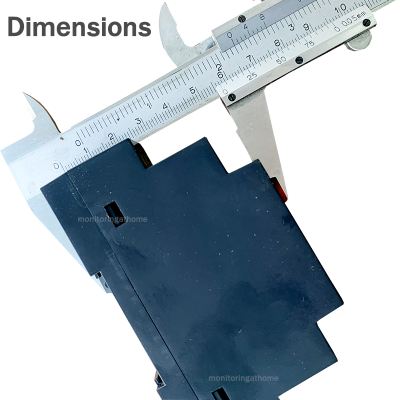

DIMENSION Plastic Case 27 x 93 x 56mm


สามารถนำไปใช้ในงาน Alarm and Automation ได้ดี

เหมาะสำหรับ  งานระบบ CCTV system  , Burglar System หรือ ไฟเลี้ยงอุปกรณ์ ของระบบต่างๆ

  ติดต่อสั่งซื้อได้ ในราคา พิเศษกว่าใคร


Images

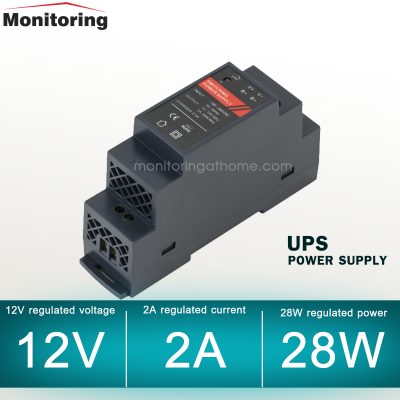

12V din rail ups power supply
12V din rail ups power supply
12V Din rail UPS power supply
12V din rail power supply
12V din rail power supply
12V din rail power supply
