รีเลย์พร้อมซ๊อคเก็ต LY2NJ-220V 10A relay with socket 8pin
Price: ติดต่อสั่งซื้อ 02-690-8538

Description
LY2NJ 220VAC contact รีเลย์พร้อมซ๊อคเก็ต relay with socket 8pin 220V 10A



Features
- Various relays, including LED,test button
- With 2Z,4Z contact forms
- With various terminal types
- Gilt contact types
- Transparent dust-proof cover, Various
  mounting types
- Various sockets available



Specification



Contact Ratings

2Z

Contact Resistance

50mΩ (1A 6VDC)

Contact Material

Silver Alloy

Contact capacity

10A /250VAC 30VDC

Insulation Resistance

500MΩ, 500VDC



Dielectric Strength

BCC1500VAC 1minute

BOC1000VAC 1minute

COC1500VAC 1minute

Operate Time

10ms / 10ms

Terminal Type

PCB Socket



Coil Version



Nominal Voltage VDC

Pull-in Voltage (VDC)

Release Voltage (VDC)

Coil Resistance at :±10%(Ω)

Nominal Voltage VAC

Pull-in Voltage



VAC

Release Voltage VAC

Coil Resistance at Ω:±10%  VAC

5

4.8

0.50

30

6

4.80

1.80

12

6

4.8

0.60

40

12

9.60

3.60

42

12

9.6

1.20

160

24

19.2

7.20

168

24

19.2

2.40

640

48

38.4

14.0

675

48

38.4

4.80

2560

110

96.0

36.0

3500

110

88.0

11.0

12100

220/240

176.0

66.0

14000





Images

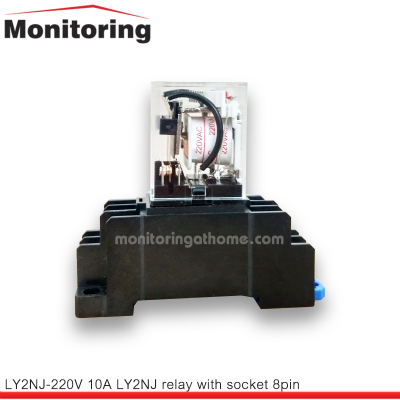

LY2NJ Relay with socket 220VAC
LY2NJ Relay with socket 220VAC
LY2NJ Relay with socket 220VAC

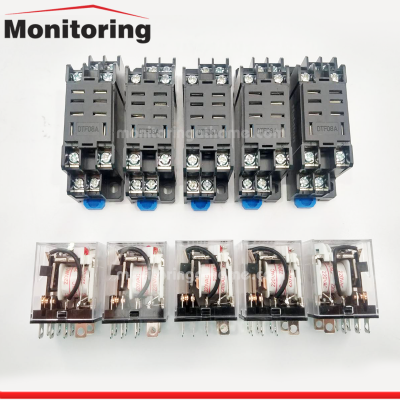

LY2NJ Relay with socket
LY2NJ Relay with socket

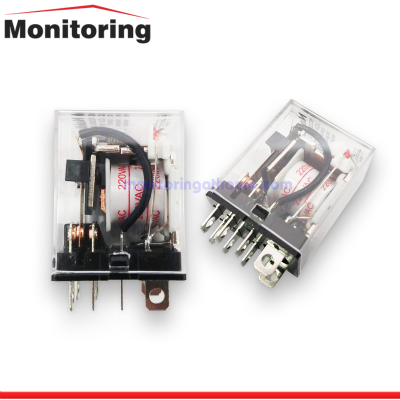

LY2NJ Relay with socket 220VAC 10A
