รีเลย์พร้อมซ๊อคเก็ต LY2NJ-24V 10A relay with socket 8pin Print this pagePrint this page

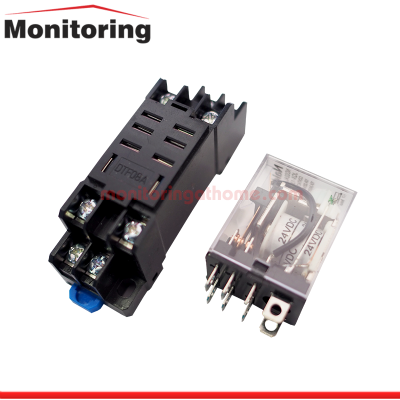

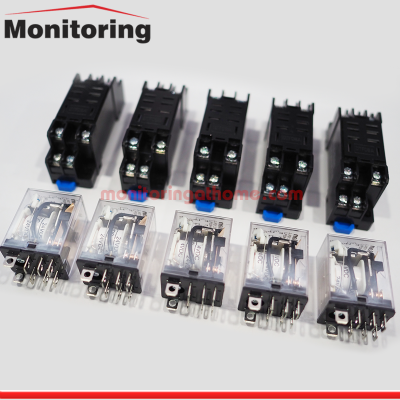

รีเลย์พร้อมซ๊อคเก็ต LY2NJ-24V 10A relay with socket 8pin
Price: ติดต่อสั่งซื้อ 02-690-8538

Description
LY2NJ  24VDC contact รีเลย์พร้อมซ๊อคเก็ต relay with socket 8pin 24V 10A



Features
- Various relays, including LED,test button
- With 2Z,4Z contact forms
- With various terminal types
- Gilt contact types
- Transparent dust-proof cover, Various
  mounting types
- Various sockets available





Specification



Contact Ratings

2Z

Contact Resistance

50mΩ (1A 6VDC)

Contact Material

Silver Alloy

Contact capacity

10A /250VAC 30VDC

Insulation Resistance

500MΩ, 500VDC



Dielectric Strength

BCC1500VAC 1minute

BOC1000VAC 1minute

COC1500VAC 1minute

Operate Time

10ms / 10ms

Terminal Type

PCB Socket



Coil Version



Nominal Voltage VDC

Pull-in Voltage (VDC)

Release Voltage (VDC)

Coil Resistance at :±10%(Ω)

Nominal Voltage VAC

Pull-in Voltage



VAC

Release Voltage VAC

Coil Resistance at Ω:±10%  VAC

5

4.8

0.50

30

6

4.80

1.80

12

6

4.8

0.60

40

12

9.60

3.60

42

12

9.6

1.20

160

24

19.2

7.20

168

24

19.2

2.40

640

48

38.4

14.0

675

48

38.4

4.80

2560

110

96.0

36.0

3500

110

88.0

11.0

12100

220/240

176.0

66.0

14000
