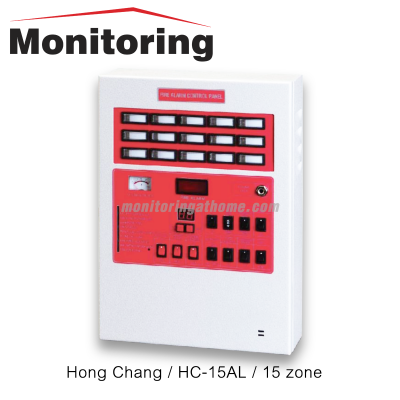

Fire Alarm Control Panel 15Zone
Price: ติดต่อสั่งซื้อ 02-690-8538

Description

ตู้ควบคุม ในระบบแจ้งเตือนไฟไหม้ เป็น ตู้ควบคุมหลัก (Master Panel) แบบ 15 zone

Function

- Alarm Verification : Double check the fire alarm signal to avoid alarm.

- Battery self-protect : Battery is running lower 18VDC, it will stop discharging.

- Indication LED : Different color color light to indicate different condition.

- Loop auto test and manual test : Test loop from 1 to the last automatically or set a certain loop manually to test.

- Annunciator Panel is available.


Specification

Type : Conventional type

Input Voltage : 220VAC/50Hz

Operation Voltage : 24VDC

Spare Battery : 24VDC

End of Line Resistance : 10KΩ

Max.Amount of smoke detectors : 20 pcs/Loop

Alarm Verifying Time : 7 seconds

Exterior Resistance : Round-trip under 56Ω
