แหล่งจ่ายไฟ 24V DIN Rail / UPS DC24V 2.5A DIN Rail power supply Print this pagePrint this page

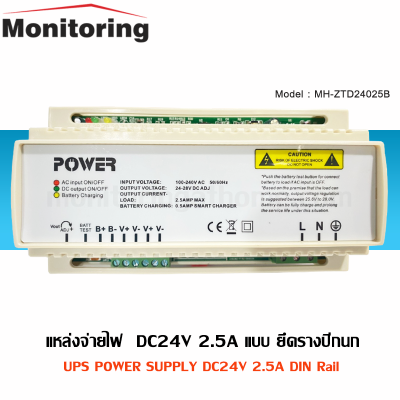

แหล่งจ่ายไฟ 24V DIN Rail / UPS DC24V 2.5A DIN Rail power supply
Price: ติดต่อสั่งซื้อ 02-690-8538

Highlights:
UPS DC24V 2.5A DIN Rail  ยึดรางปีกนก
Description
แหล่งจ่ายไฟ UPS DC24V 2.5A DIN Rail ที่มีแบตเตอร์รี่สำรอง ขณะไฟดับ เหมาะหรับอุปกณ์ที่ต้องการ สำรองไฟขณะไฟดับ อาทิ ระบบ CCTV , ระบบ Alarm Security , ระบบควบคุม อัตโนมัติ


- Read carefully this user guide before activating and using.
- Mounting, maintenance and repair must be carried on by a skilled and authorized staff. - The activation is easy, but a correct handling and an appropriate maintenance are


ราคาดังกล่าวยังไม่รวม Battery 2 ก้อน

-------------------------------------------------------

Main specification
- AC supply: 100-240V AC 50/60Hz
- Output voltage
on mains power : 24.0V-28.0V DC adjustable
on battery standby : 20.6V-26.0V DC
- Max. Output current: 2.5Amp
- Max. Charge currge: 0.5Amp
- Operation temperature: -20 ~+ Degree Celsius
- Humidity: Up to 80% non-Condensing
- Dimension 159*88*65mm

ตัวอย่าง การนำไปใช้งาน


Images

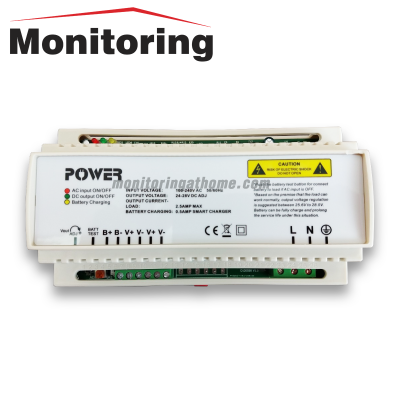

Din rail power supply 24V
din rail ups

24VDC din rial with backup
24VDC din rial  with backup
24V din rial with backup
