Conventional fire alarm 4 zone
Price: Call

Highlights:
SFP-2402 ตู้ควบคุมระบบแจ้งเหตุเพลิงไหม้ แบบ 4 zone  มาตรฐาน UL สำหรับตึกอาคารทั่วไป
Description

The SFP-2402  are UL Edition listed conventional fire alarm control panels with two alarm initiating zones and four initiating zones respectively. The Notification Appliance Circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires.

Features & Benefits:

  • Compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices
  • 2-zone: 2 Class B/Style B zones; 1 Class B/Style Y NAC
  • 4-zone: 4 Class By/Style B zones (Class A/Style D optional); 2 Class B/Style Z (Class A/Style Z optional)
  • 3 Amps (expandable to 6.0 AMPS on 4-zone) with programmable strobe synchronization

Specifications

  • Initiating Device Circuits: SFP-2402: 2 Class B SFP-2404: 4 Class B (Class A option available)
  • Notification Appliance Circuits (NACs): SFP-2402: 1 Class B
  • SFP-2404: 2 Class B (Class A option available)
  • Voice Evacuation Available: Yes: requires direct connect to Fire Voice 25/50
  • Power: 3.0 amps total system power; SFP-2404 expandable to 6 amps

Listings:

  • UL Listed: S635
  • MEA: 297-01-E Vol. II
  • CSFM: 7165-0028:220


Images

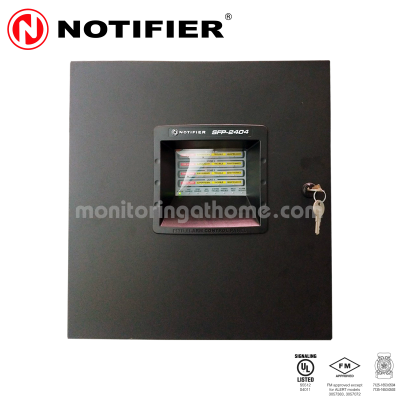

SFP24024
SFP24024
SFP24024 fire alarm
