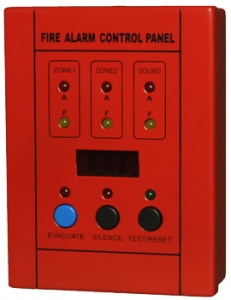

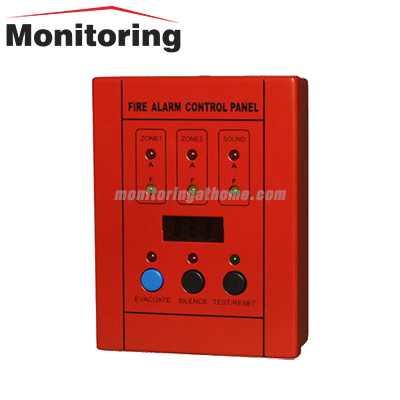

Mini Conventional Fire Alarm Control Master Panel
Price: ติดต่อสั่งซื้อ 02-690-8538

Description
ตู้ควบคุม ในระบบแจ้งเตือนไฟไหม้  ขนาดเล็ก  เป็น ตู้ควบควบคุมหลัก (Master Panel  ) แบบ input  2 โซน  กับ 1 Sound out
มีLED แสดงผลเลข โซนที่เกิดเหตุ  สามารถทำงานเป็น Stand alone  หรือ ระบบ
เมื่อเชื่อมต่อกับ ตู้ควบคุมย่อย (Slave panel )  โดย 1 ตู้ควบคุมหลัก
สามารถพ่วงต่อตู้ควบคุมย่อย ได้ 31 ตู้





ขนาดตู้ 108X143X40mm


The mini 2 zone panel have Master panel and Slave panel. One Master panel can connect 31 Slave panel,
and the Master panel could show the fire and fault of all slave panel. The slave panel can only show itself fire and fault.

Key Specifications/Special Features
Four Style B (Class B) Initiating Device Circuits (IDCs).
One Master Panel also has two zones, each zone can connect max.25 conventional detectors.
One slave Panel has two zones, each zone can connect max.25 conventional detectors.
The Mater panel could show the fire and fault of all slave panel. The slave panel can only show itself fire and fault.
Mini size as 108X143X40mm
Master panel has 4 digital LED display to show slave number and status.
2 Detection Zones Panel, 25 Detectors per Zone
Fire 1 relay would be activated when one zone alarms.
Fire 2 relay would be activated after 30 seconds delay when two zones alarm.
1 Sound relay output for sound alarm
1 Fault relay output for fault condition
Zones Fire and Fault LEDs indication
Fire1, Fire2, Sound relay outputs can be activated manually
RS485 Port for repeater up to 1.2Km
Up to 31 Slave panels can be connected to one Master panel
Powered by outside DC22-26V power supply
End Of Line Status Detection, Short circuit /open circuit detection
Two modules power supply could be selected.
The power supply input is AC90-270V
Two 4AH batteries can be housed in the power supply cabinet.
Relay output contacts rated at: 2.0 amps @ 30 VDC.
