เซนเซอร์รั้วลำแสงกันขโมย 4 Beam 250m Photoelectric Beam Detector Print this pagePrint this page

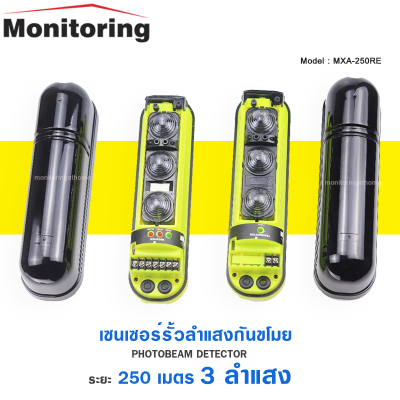

เซนเซอร์รั้วลำแสงกันขโมย 4 Beam 250m Photoelectric Beam Detector
Price: ติดต่อสั่งซื้อ 02-690-8538

Highlights:

เซนเซอร์รั้วลำแสงกันขโมย 3 Beam 250m Photoelectric Beam Detector


Description

รั้วลำแสงกันขโมย  3 beam Sensor : Photoelectric Beam Sensor :  ระยะทำงาน 250 m
3 beams infrared detector เซนเซอร์รั้วลำแสง แบบ 3 ลำแสง  ทำงานทันที เมื่อเดินตัด 3 ลำแสงพร้อมกัน
ระยะทำงาน 250 m





photoelectric Beam Detector(infrared detector) is  the besy equipment  to  protect  house safe .
LCD voltage display installing easier


Technical parameters

No.Of Beam : 3 beam

Detection mode : 3 beam blocked simultaneous

Optical source : Infrared digital pulse beam

Response speed : 50~700msec

Alarm Output : Relay contact :NO.NC contact rating:AC/DC30V 0.5AMax

Power supply : DC13.8~24V AC11~18V P 15W

Power consumption : 55mA max. 65mA max. 70mA max. 75mA max. 80mA max.

Operation temperature&humidity : -25°C~55°C 5%~95%RH (relative humidity)

Dimensions : Refer to its diagram

Temper output : 0~700msec

Optical axis adjustment(H) : 180° (±90°)

Optical axis adjustment(V) : 20° (±10°)

Protection against dew, frost : Calefaction houseing(optional)

Material : ABS Resin

Net weight : 930g(transmitter+receiver)


สั่งซื้อจำนวนมาก ติดต่อ ฝ่ายขาย
